Dongguan Hongxuan CNC Technology Co., Ltd.

The high-speed precision turret lathe T series is used to meet the large-volume processing of shaft parts with clamping diameters from 120MM to 250MM and clamping lengths from 100MM to 600MM. The main use is Taiwan's new 21TA system, automatic lubrication system. The spindle servo power supply is 7.5KW, the maximum stroke is 230MM, the maximum speed is 4500 rpm, and the positioning accuracy is ±0.005, 6-inch hydraulic chuck.

Technical Parameters

Processing range
Maximum turning diameter 450MM

Maximum processing diameter (disc type) 420MM

Maximum machining diameter (shaft type) 51MM

Maximum machining length 150MM

Maximum bar through hole diameter 51MM

stroke
X-axis effective stroke (diameter) 860MM

Z-axis effective stroke 350MM

Spindle
Spindle nose form A2-6

Maximum spindle speed 3500RPM

Spindle through hole diameter 65MM

Spindle motor power 7.5KW/11KW

Hydraulic chuck and rotary cylinder specifications 8 inches

Feed
Fast moving rate X/Z 24M/MIN

X/Z axis servo motor 1.3KW

Precision
positioning accuracy ±0.005

Repeatability ±0.005

Knife tower Turret specification

Taiwan servo turret
Turret model 63-8 station

Knife center height 63MM

size and weight
Dimensions 2100×1580×1900MM

weight 3100KG

CNC數控車床_鴻軒數控數控排刀機_鴻軒數控數控設備生產廠家

1. Preparation for installation

1) Please ensure that the grounding foundation of the machine placement area is firm, large-scale machines need prefabricated cement foundation, and the foundation map will be notified separately.

2) Please install the three-phase 380V, 50Hz power supply in advance, and ensure that the grounding is good. It is recommended to have a regulated power supply.

3) Please ensure that there is no less than 0.6MPa air source and that the compressed air is dry and free of water.

4) Please prepare the lubricating oil and chip liquid in advance. The guide rail oil specification is ISO VG68, and the optional spindle oil cooler is ISO VG10.

5) Please ask the buyer to specify the operator and maintenance personnel of the machine, and assign special personnel to assist our company to install and debug the machine tool.

2, commissioning and acceptance

1) Prepare the buyer for the requirements of Article 1 before installing and adjusting the work.

2) Appearance inspection: Visual inspection of the appearance of the personnel of both buyers and sellers, tools and accessories shall be checked and accepted according to the contract and attachments.

3) Performance and function acceptance: Acceptance according to the scope of supply of the machinery and controller determined by both parties.

4) Mechanical precision acceptance: According to the accuracy inspection record provided by our company on the random factory certificate, the basis for acceptance is accepted.

5) After the acceptance is completed, the buyer must immediately sign the “Installation Adjustment Test Invoice” in duplicate, and each party will keep one copy.

3. Training

Party B is responsible for technical training for Party A. The training time is 1-2 working days, and the training personnel are 1 to 5 people. The training location is in Party B, and training can also be conducted in Party A. The training includes machine structure, performance and function, CNC system, programming and operation, machine maintenance and other knowledge. Trainers take care of themselves.

CNC turret lathe HXCNC-52ZD

Model:HXCNC-52ZD

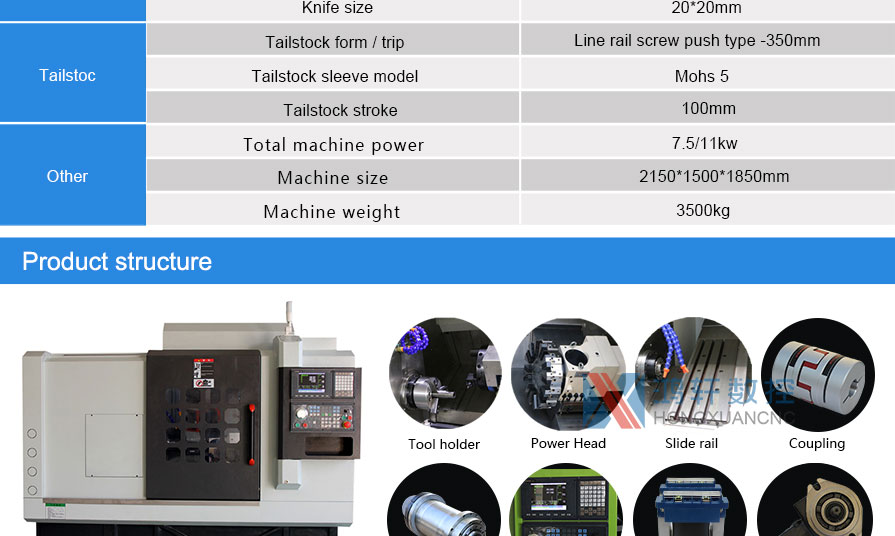

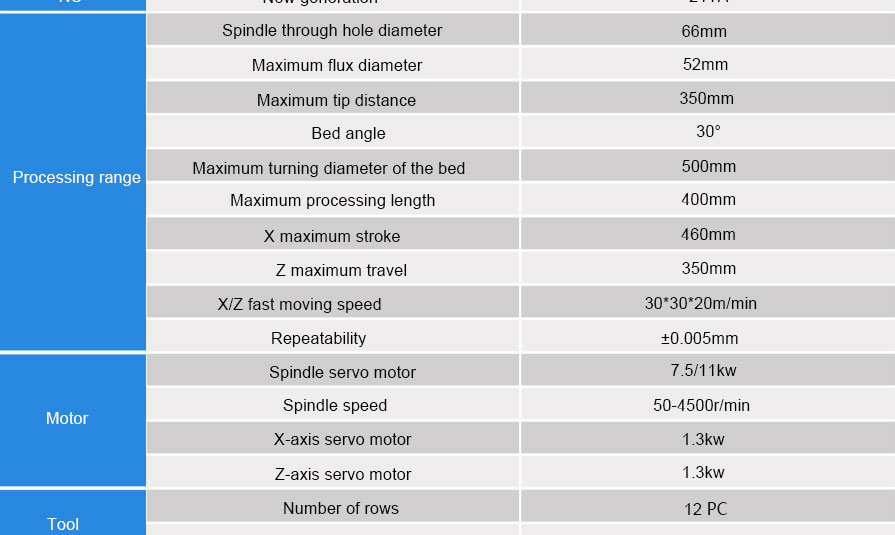

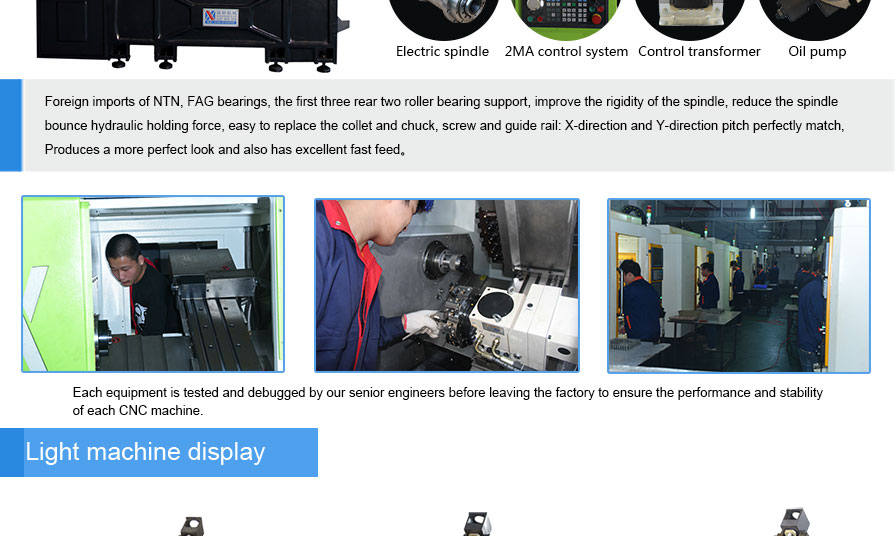

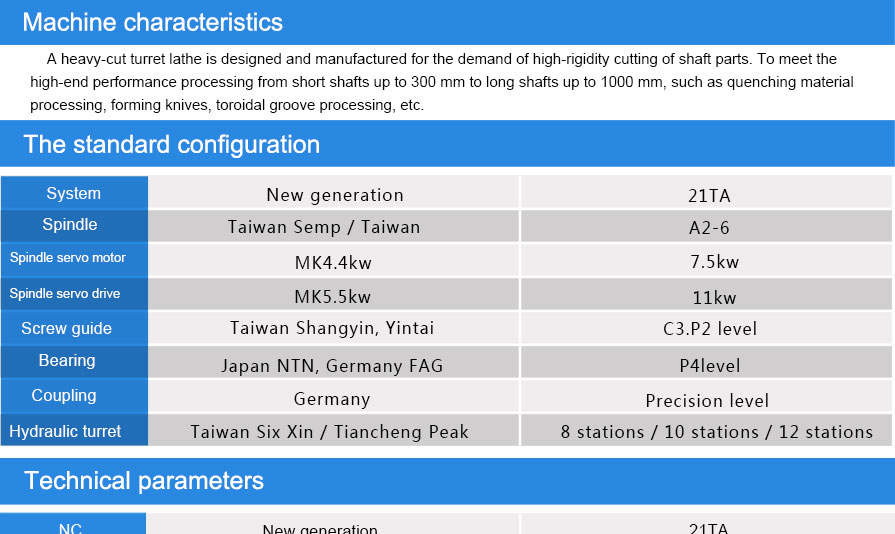

Product DescriptionFeaturesScope of ApplicationDetailed Description
